NOVATECH TURNKEY SERVICES & EQUIPMENT
Safety, Quality and Efficient Delivery
Chinese Equipment

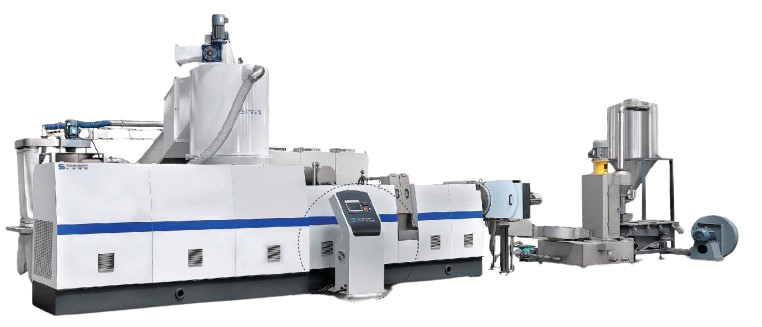

One-Stage Compactor Pelletizing Machine
| Model | Extruder | Screw Diameter (mm) | L/D Ratio | Power (KW) | Capacity (PE) (kg/h) | Capacity (PP) (kg/h) |
|---|---|---|---|---|---|---|
| FS70 | SJ70/33 | 70 | 33:1 | 120 | 120-150 | 100-120 |
| FS85 | SJ85/33 | 85 | 33:1 | 155 | 180-250 | 150-200 |
| FS100 | SJ100/33 | 100 | 33:1 | 210 | 280-350 | 250-300 |
| FS130 | SJ130/33 | 130 | 33:1 | 300 | 480-550 | 400-480 |
| FS160 | SJ160/33 | 160 | 33:1 | 370 | 650-750 | 550-650 |
| FS180 | SJ180/33 | 180 | 33:1 | 460 | 800-1000 | 750-850 |

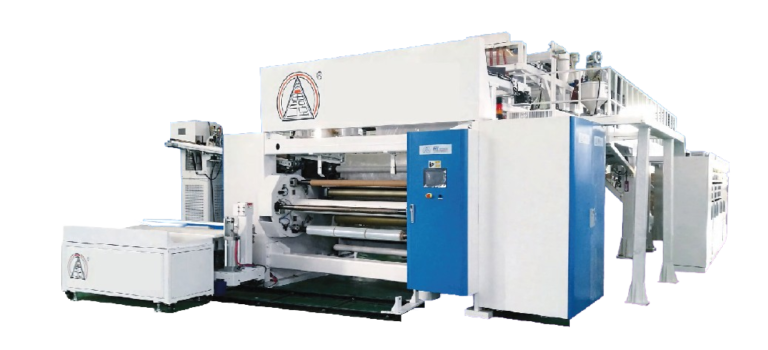

HB350 Series Four-Shaft Cast PE Stretch Film
| Model SJLM-CR-Z | 1000-2000mm | |||
|---|---|---|---|---|
| Screw Diameter (mm) | 65/100/65 | 65/115/80 | 65/110/110/65 | 65/115/115/65 |
| Width of Die (mm) | 1300 | 1900 | 1900 | 2400 |
| Width of Film (mm) | 1000(500×2) | 1500(500×3) | 1500(500×3) | 2000(500×4) |
| Thickness of Film (mm) | 0.012-0.035 | 0.012-0.035 | 0.012-0.035 | 0.012-0.035 |
| Structure of Film | A/B/C | A/B/C | A/B/C/B/D | A/B/C/B/D |
| Max. Extrusion Capacity (kg/h) | 400 | 720 | 750 | 900 |
| Design speed (m/min) | 350 | 350 | 350 | 350 |
| Total Installed Power (kw) | 260 | 360 | 480 | 520 |
| Overall Dimensions (m) | 12×6×5 | 14×7×5.5 | 15×8×5.5 | 16×10×5.5 |
| Weight (T) | 25 | 30 | 35 | 50 |

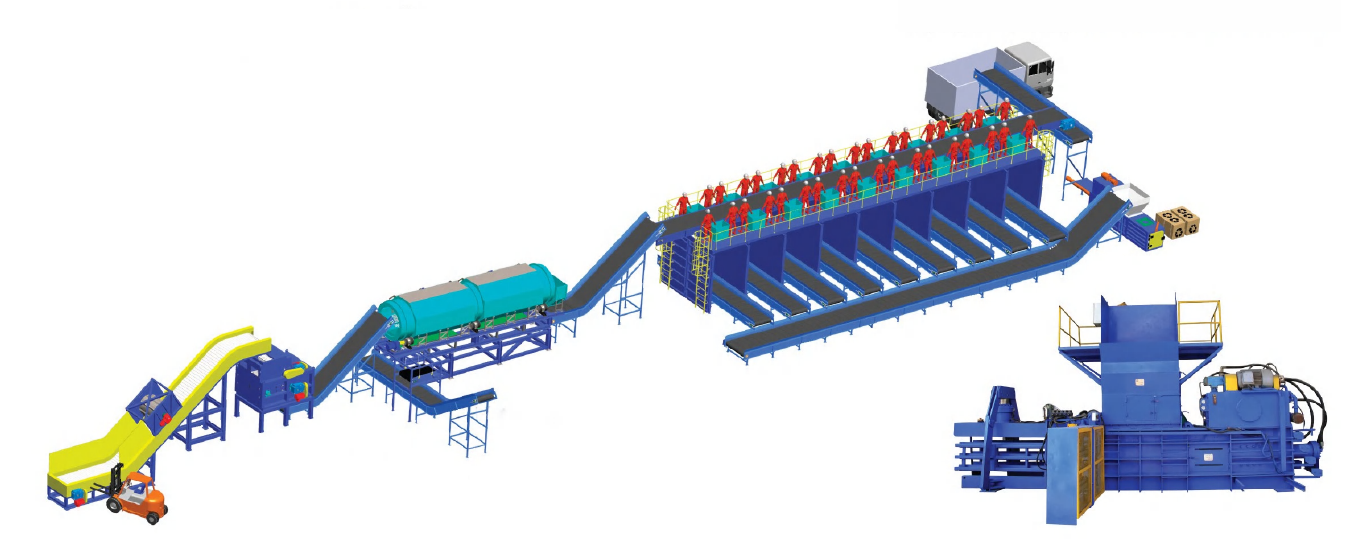

Domestic Garbage Recycling Production Line

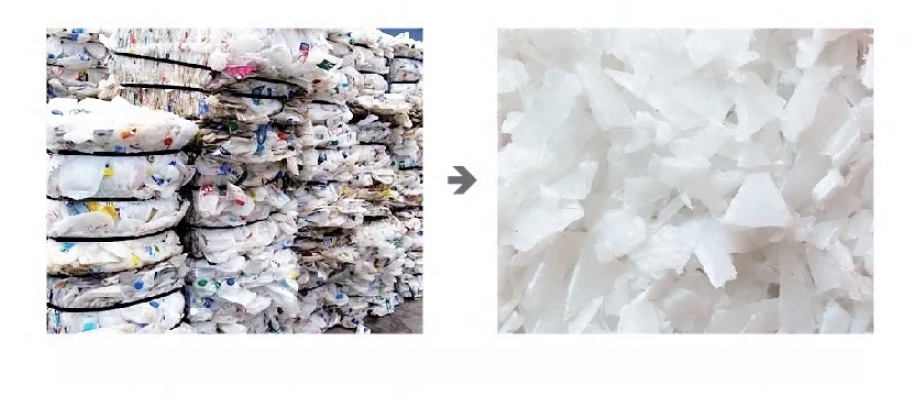

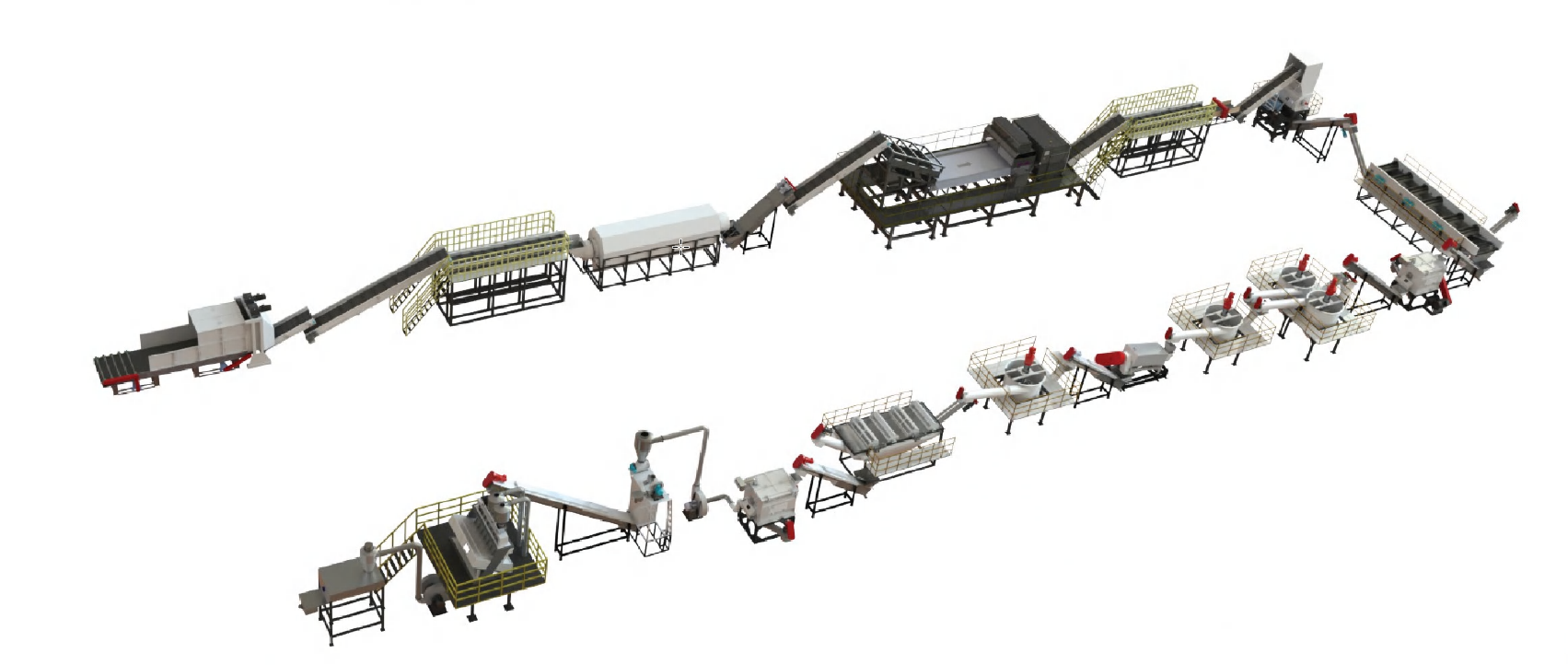

HDPE Milk Bottle Washing Line

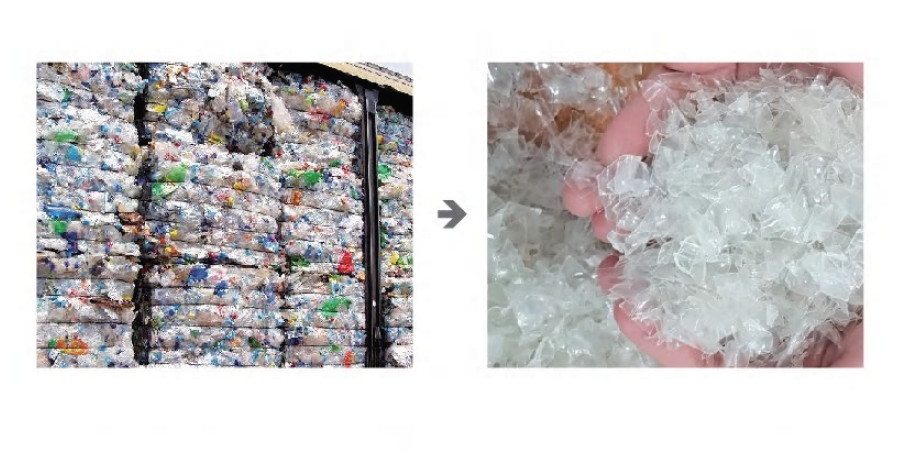

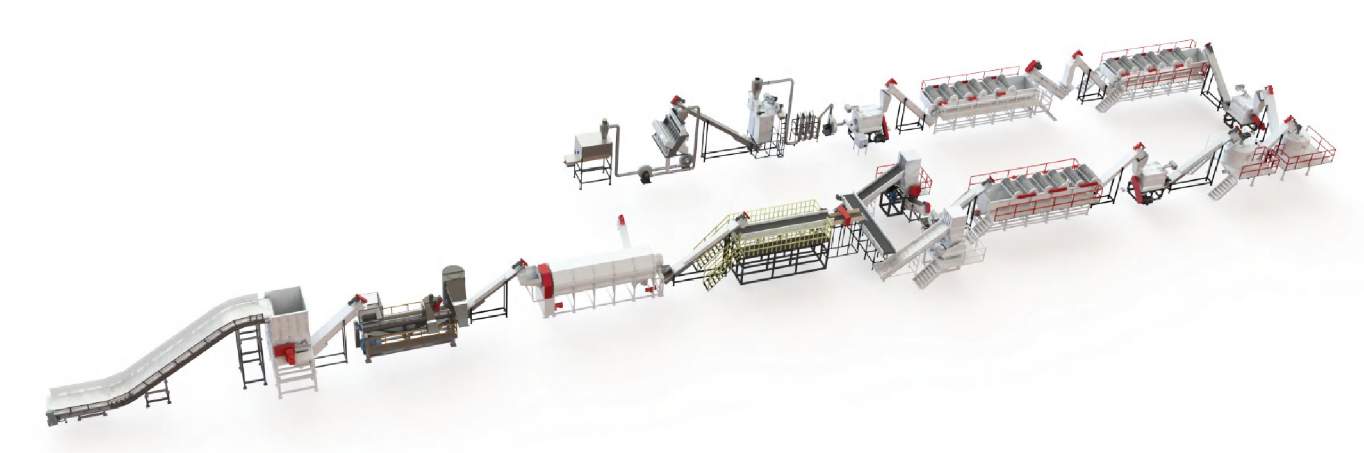

PET Bottle Recycling Washing Line
Don't hesitate to get in touch with us - Email us for more information
Contact Us
Don’t hesitate to get in touch with us if you’re interested in improving production or efficiency on your factory line, or if you’d like to learn more about our services and how we can tailor them to meet your specific needs.
